VESDA VLI (VLI-885)

Very Early Smoke Detection Apparatu
High-sensitivity air intake sensing

VESDA VLI (VLI-885)
Type approval 16-73 (analog type, air intake number 4X90m, air pipe maximum length 360m)
Ambient temperature	0 ~ 39℃	color	Black
Relative humidity	0 to 95%	Size	426.5(W) X 316.5(H) X 180(D)mm
Rated voltage	DC 24V	IP rating	66
Current Consumption	Monitoring 415mA / Alarm 440mA	Weight	-
Detection method	A method of measuring the scattering of light in a laser chamber by sucking smoke particles through an air intake pipe	Accessory material	VSP-030 (Intelligent filter) / VSP-033 (Chamber assembly) VSP-031 (Secondary foam filter) / VSP-036 (Suction sensor) VSP-032 (Inspirator)
Sensitivity range	0.025 to 20% obs / m	Threshold Setting Range	alert 0.05% ~ 1.990% obs/m action 0.1% ~ 1.995% obs/m Fire1 0.15% ~ 2.0% obs/m Fire2 0.155% ~ 20.00% obs/m

※ VESDA VLI는 산업계 최초의 공기흡입형 조기 연기감지(ASD) 시스템입니다

VESDA Overview

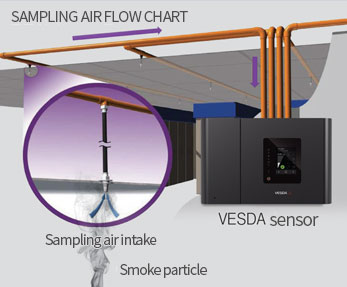

Real-time measurement of "current smoke concentration in the air" using a pipe network "Active" early detection of signs of fire Early detection of smoke.

VESDA Features

Optical Light Scattering detection method using laser (Absolute value detection of smoke)
System auto-configuration function (Autolearn)
World's highest sensitivity detection and maximum sensing range (0.00075 ~ 32% obs / m)
The world's largest event can be stored (18,000)
World's highest / maximum range fire alarm value (0.005-20% obs / m)
Automatic fault diagnosis
Dust filter using dual filter
The optical part is kept clean and no correction is required
Always detect air flow per pipe
VESDANET communication enables monitoring and control in any area

VESDA certification

Comparing VESDA and existing fire detectors
Division	Existing fire detector
Division	General detector	Analog detector
Sensitivity (%/m)	4 to 10 (% / m)	3 to 8 (% / m)	0.005 (% / m)
Fine smoke detection	X	X	X
Alarm classification	Simple alarm	Multi-level (2) Alarm	Multi-level (3 ~ 4) Alarm
Data Management	No function	No function Data storage Data storage, transmission	Data storage, transmission
Environmental conditions (high / low temperature)	Influence	Influence	Influence Influence Influence Influence
Equipment life	5 to 10 years	5 to 10 years	More than 10 years
Fire Alarm Point	General Location: Fire Progress Stage	General Places: Fire Progress Stage	General Places: Early Stage of Fire
Fire Alarm Point	Air-conditioning system: Fire spreading stage	Air-conditioning system: Fire spreading stage	Air-conditioning system: Early stage of fire
Maintenance	5 ~ 10 years	Failure check failure	Failure Self diagnosis
Automatic environment calibration technology	X	X	Notify operator of dust, humidity, air flow, etc.
Adjust sensitivity depending on environment	X	X	Adjustment of random sensitivity according to the application place of clean room, factory, etc.
Adjust sensitivity depending on environment	X	X	Sensitivity can be set according to day / night environment
